AddPac SIP paging solution for VHF Radio System based Voice Announcement, Demo Youtube, IP based Wired and Radio Simultaneous Public Announcement for Construction Area

PTT SIP Paging Phone (AP-PCT100N)

AP-LMR200N Land to Mobile Radio Gateway

High Performance SIP Paging Server (AP-PNC2000)

SPMS (SIP Paging Management Software)



SPCS  (SIP Paging Client Software)

VHF Radio System based Public Announcement Demo. Youtube

AddPac SIP paging solution for VHF radio system consists of AP-PCT100N SIP paging PTT terminal, AP-LMR200N RoIP gateway and AP-PNC2000 SIP paging server.

AP-PCT100N supports remote push-to-talk paging function using internet with 7 inch color LCD monitor. AP-PCT100N Remote SIP PTT paging terminal transmits real-time paging to LMR radios at remote side by using AP-PNC2000 SIP paging server an AP-LMR200N RoIP gateway.

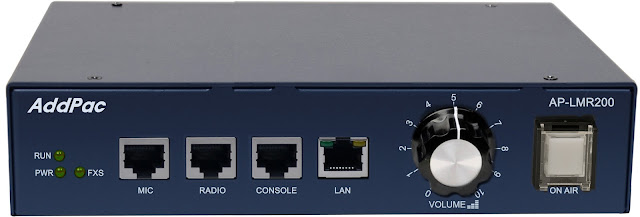

AP-LMR200N LMR gateway provides an optimal level of radio over IP service when it interoperates with conventional radio device. As well as basic radio PTT function, AP-LMR200N LMR gateway supports SIP-based remote radio paging function by using with AP-PNC2000 SIP paging server and AP-PCT100N PTT terminal.

AP-PNC2000 SIP paging server supports AP-SPMS smart paging management software. AP-SPMS SIP Paging Management Software operates in various web browser environments. AP-PNC2000 SIP paging server supports broadcasting source management, group management, scheduled broadcasting, remote broadcasting management etc.

Network Diagram



Demonstration

1.    Live paging to VHF radio system (between SAMYOUNG radio and ICOM)

2.    Live paging to VHF radio system and AP602 built-in amplifier SIP paging terminal simultaneously.

3.    Media file paging to VHF radio system

4.    Media file paging to radio & AP602 built-in amplifier SIP paging terminal simultaneously.
