AP-VAC70TAS Time Attendance HD IP Video Door Phone (근태관리 기능 지원 HD급 IP 비디오 도어폰 인터폰)



Demo. Youtube :

AP-VAC70TAS Time Attendance HD IP video door phone is a visitor access control unit with built-in time & attendance function. It has an excellent scalability using SIP standard VoIP signal process feature by interworking with AddPac IP-PBX, IP video phone.

AP-VAC70TAS supports high performance H.264 video codec for high definition video quality. Built-in full HD camera sensor supports low light application and wide angle view.

AP-VAC70TAS supports RF card recognition function for easier access.

AP-VAC70TAS supports large key design, time & attendance menu, function & direction keys for time attendant service. AP-VAC70TAS supports various time & attendance service such as Login Control, Daily Attendance Rules, Monthly Attendance Rules, Business Trip and Vacation, Report etc.

Overall Features
	- Time and Attendance Supporting IP Video Door Phone Solution
	- Support various IP-PBX, video phone
	- Support rate control to secure the optimum level of resolution and frame rate
	- Apply high end error resilience to cope with various packet errors in network
	- Support 2.4inch TFT color LCD
	- High Performance Programmable DSP
	- SIP/H.323 dual stack
	- Flash memory 512Mbyte, SDRAM 128Mbyte
	- Support speaker phone
	- Full HD Video Camera, Night Mode Support
	- Support access control with RF card and password
	- Network interface: 10/100Mbps fast Ethernet interface x 1

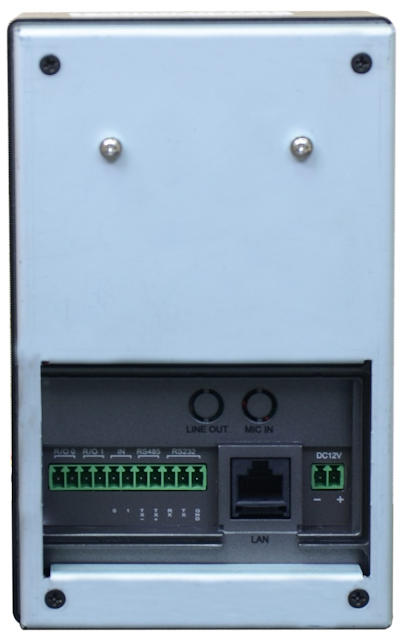

	- Support RS232/RS485 interface, alarm input, relay output port
	- Support PoE



Network Diagram



Demonstration

1. SIP video call and remote door open function

This is SIP video call demonstration between AP-VAC70TAS IP video door phone and AP-VP280GPTT IP video phone and remote door open function.



2. Time & Attendance function

This is demonstration about time & attendance function using RF card

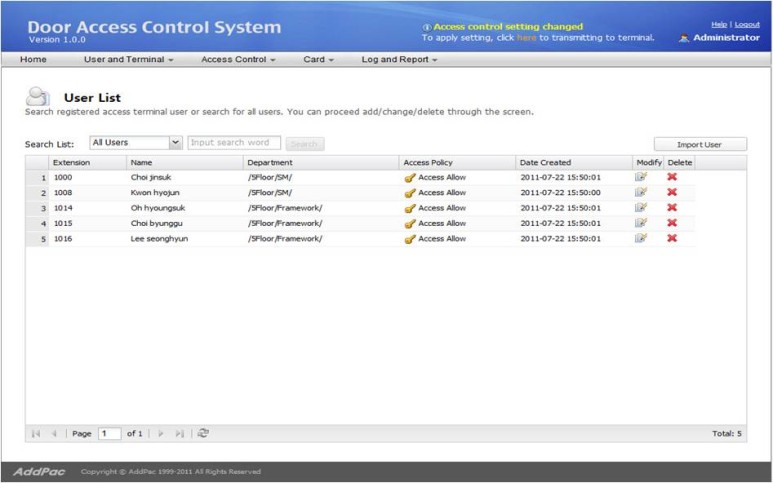

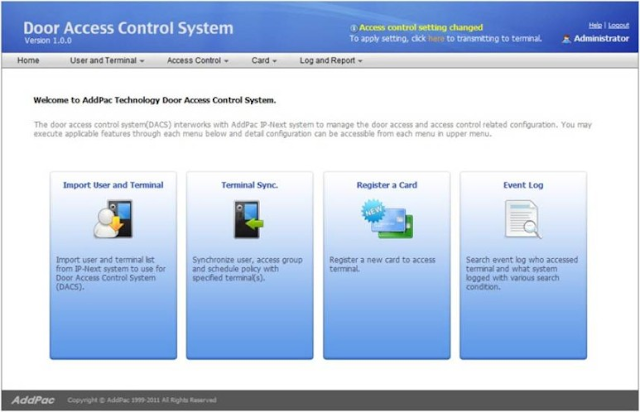

Door Access Controller System Software (Example)

Time & Attendance Manager Software (Example)
