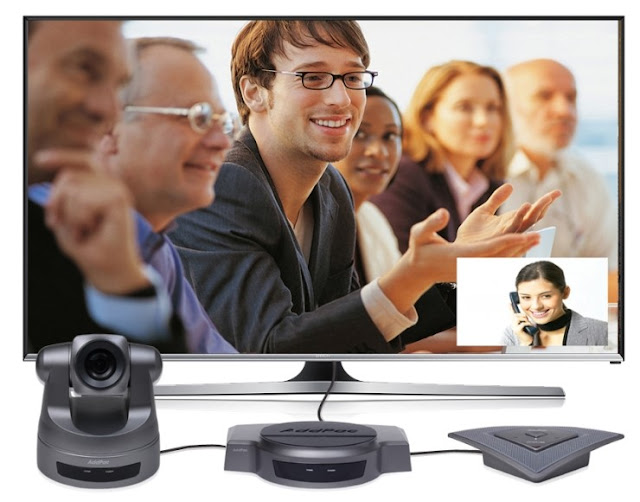

AP-HCC300 HD video conferencing codec is an all-in-one high performance IP video communication solution that supports video input interface for external HD camera as well as HDMI video output interface. It supports one channel video interfaces for face-to-face video conferencing with external HD camera. It is designed on the basis of high performance DSP processor to support the latest audio/video codec, AV input/output interfaces for video conferencing. This can be connected with external PTZ HD camera, HDTV, speaker and microphone. It is applicable to various fields such as audio/video broadcasting as well as video conferencing.
| Service | Service Description | External Device |
| Video Conferencing | Real time video conferencing, connect with external PTZ video conferencing camera/microphone/speaker, multimedia communication through display TV | ·External PTZ Full HD Video Conferencing Camera · External Microphone/Speaker · TV Display |
| Audio/Video Broadcasting | Use as video broadcasting service terminal along with existing audio broadcasting in finance, local government, and enterprise environment. Must add separate AddPac broadcasting server | · External Microphone/Speaker · TV Display · Audio/Video Broadcasting Server · Audio/Video Contents Source |
Use Internet with TV/External Microphone
AP-HCC300 HD video conference codec supports HDMI video interface for the HDTV display. User may setup call dialing through FXS port or call through remote controller on TV screen or web based smart communication controller and setup video conferencing devices easily.
High Performance DSP based HD Video Conference Codec
AddPac AP-HCC300 HD video conference codec is designed on the basis of embedded DSP hardware structure to provide real time audio/video encoding, decoding process for point-to-point video conferencing. It supports central process form of centralization system for 1:N multi-party video conferencing by interworking with AddPac external MCU device. AP-HCC300 HD video codec system supports various types of video conference mode through external MCU interworking function. It supports Meet-Me (Dial-In), Ad-Hoc (On-Demand) and Scheduled Video Conference Mode. AP-HCC300 supports SIP and H.323 VoIP signaling for 1:N multi-party video conferencing and 1:1 video conferencing.
Maximum 30 frames of H.264 based HD image per second
AP-HCC300 HD video conference codec processes HD (720P:1280 x720) images per second based on H.264 video codec. Thus, user may feel high definition video image through HDTV display screen
Firmware Upgradeable Structure
AP-HCC300 high performance DSP is all programmable structure so that constant feature improvement, feature edit, and additional feature can be done without much effort. User may use the latest codec with service as well as existing H.264 codec.
Privacy Protection
AP-HCC300 supports both network security for the purpose of device access restriction and service security. Use CID (caller ID) function to check the other party’s phone number before answering and blocking video/audio feature using remote controller. When selecting “Privacy” menu, you may block voice, video, or both in advance.
AddPac VoIP and video solutions are well known in terms of its performance and stability throughout the world. With our accumulated experience in both enterprise market and commercial market, AP-HCC300 would satisfy the needs of customer.
