AP2830 Front
AP2830 Rear
AP2830 Two(2) Port V.35 Router Configuration
AP2830 Introduction Youtube :
PassFinder AP2830 ATM router provides high-performance ATM-to-LAN solution with IP-routing connectivity for small enterprise, government and other public offices as well as Internet game room and Internet based cyber apartment.
This router guarantees best-efficient line utilization as E1/T1 ATM Interface is used. And this equipment is designed as form of One(1) network interface module slot and Two(2) multiservice I/O slots, so this router system can be used in various WAN environment using network interface cards according to network configuration. Also mutliservice I/O slots provide the various multimedia solutions such as VoIP and Video Conference.
In addition, A2830 router supports various WAN protocols such as Frame-Relay, HDLC, IPOA, PPPoA, H.323 including Static, RIP v1/2, OSPF v2 routing protocols and network management features such as SNMP MIB v2, web based management, CLI, etc. PassFinder AP2830 router is designed to have users the greatest satisfaction with remarkable price versus performance.
This router guarantees best-efficient line utilization as E1/T1 ATM Interface is used. And this equipment is designed as form of One(1) network interface module slot and Two(2) multiservice I/O slots, so this router system can be used in various WAN environment using network interface cards according to network configuration. Also mutliservice I/O slots provide the various multimedia solutions such as VoIP and Video Conference.
In addition, A2830 router supports various WAN protocols such as Frame-Relay, HDLC, IPOA, PPPoA, H.323 including Static, RIP v1/2, OSPF v2 routing protocols and network management features such as SNMP MIB v2, web based management, CLI, etc. PassFinder AP2830 router is designed to have users the greatest satisfaction with remarkable price versus performance.
AP2800-2LAN1V35 Network Module :
AP2800-2LAN1V35 interface module supports PPP, HDLC, Frame Relay(PVC) protocols on leased line circuit as a single channel V.35 interface module, installed on network module slots of AP2850 and AP2830. It is composed of two 10/100Mbps fast ethernet interfaces for LAN connection, an 1-port RS-232C console interface and an 1-port asynchronous serial interface(RJ45).
AP2800-2LAN1V35 interface module supports full-duplex service on T1(1.544 Mbps) and E1(2.048 Mbps) environment to realize full utilizable bandwidth. One of its powerful features is supporting the advanced QoS(Quality of Service) features.
Designed with the optimized performance for stable networking services, AP2800-2LAN1V35 single channel V.35 interface module becomes the best solution for businesses to connect headquarters to multiple branch offices with Frame Relay or leased line circuit.
AP2800-ATM4E1 Network Module :
AP2800-ATM4E1 is a network module of AP2850 & AP2830 multi-service Router supporting 4-port multiple E1 ATM interface, IMA (Inverse Multiplexing over ATM) interface and 2-port 10/100Base-T network interface.
ATM IMA feature combines number of ports and utilizes the port as an extended link. So without introducing additional devices or modifying the existing devices, it can expand the network bandwidth flexibly in case of network traffic increase.

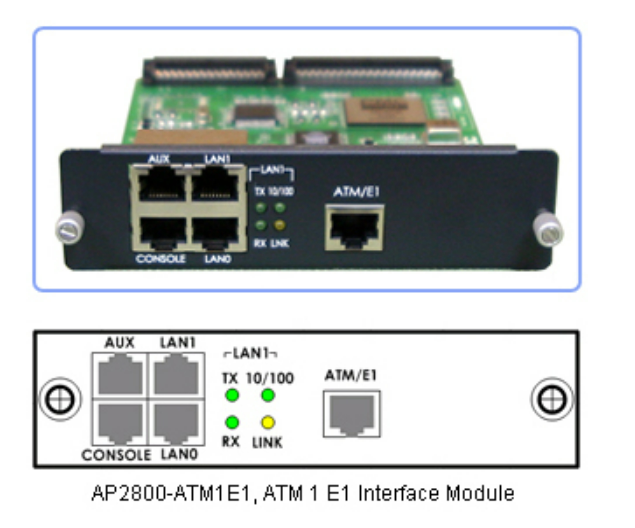

AP2800-ATM1E1 Network Module :
AP2800-ATM1E1 is 1-port E1 ATM interface module for AP2850 & AP2830 multi-service Router. It offers 2 10/100Base-T ports for internal LAN connection.
With this module, PassFinder AP2830 & AP2850 multi-service Router can offer QoS, various router service, diverse extended network service such as DHCP and NAT/PAT along with network applications such as L3 Routing service, VoIP Gateway, audio service and etc.

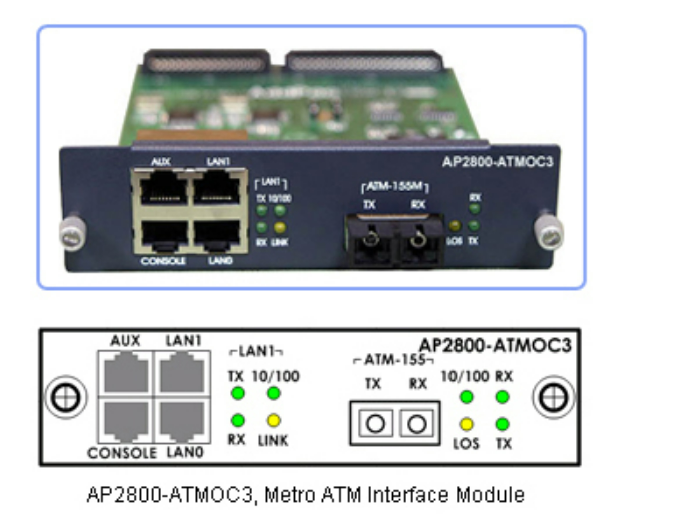

AP2800-ATMOC3 Metro ATM Interface module :
AP2800-ATMOC3 Metro ATM Interface module offers various services such as L3 routing, VoIP Gateway, audio/ video service by installed at VoiceFinder AP2850 & AP2830 Multiservice Routers. It realizes both cost effective communication and ATM QoS with Virtual Channel access.
AP2800-100FX Metro Ethernet Interface module :
AP2800-100FX Metro Ethernet Interface module offers various services such as L3 routing, QoS, VoIP Gateway, audio broadcasting terminal service by installed at VoiceFinder AP2850 & AP2830 Multi-service Routers.
4-Port Analog VoIP Moules :
Network Diagram
